Self-hosted

Layers on your server

One app and a few services in one docker-compose.yml. Installs in an air-gapped network too; your data never leaves your infrastructure.

Install Guide for AI Contact us

The hissih/layers image on Docker Hub — over 20,000 pulls. 90-day trial, then a license is required.

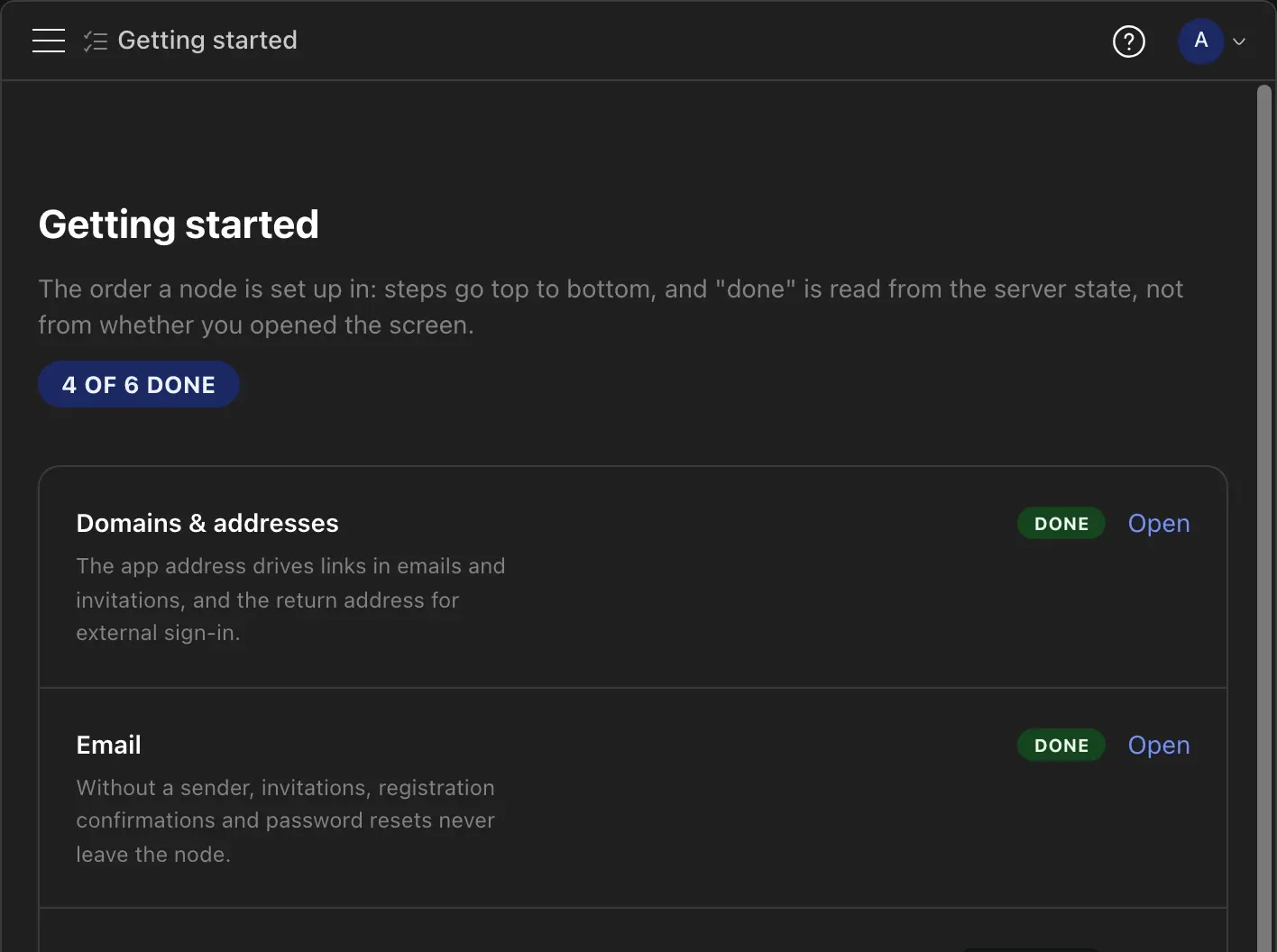

God Mode → Getting started: server checklist, 4 of 6 done — domains, email, modules, AI

Install with AI

Install it with an AI assistant

Paste the prompt into ChatGPT, Claude or any other assistant. It reads the full guide and walks you through it: domain, email, calls, editors, AI model.

Guide for AI and humans: layers.md/self-hosted/llms.txt

Prompt

Help me install Layers on my server. Guide: https://layers.md/self-hosted/llms.txt (full version: https://layers.md/self-hosted/llms-full.txt). Walk me through it step by step and first ask about the domain, email and AI model.

What it is made of

One app and a few services next to it

Everything goes in one docker-compose.yml. Only Layers and PostgreSQL are required — add the rest as you need it.

Required

Layers

8080

The whole workspace, API and the God Mode admin panel — one Java app, one port.

Required

PostgreSQL

5432

Database. Bundled in compose, or your own external server.

Recommended

Search: Manticore

9308

Search across tasks, pages, chats and files. Manticore is a separate lightweight container, already in compose. Already run an Elasticsearch cluster? Layers works with it too.

Without a separate service — built-in Lucene, index in the file directory.

For calls

LiveKit

7880 · 7881 · UDP 50000–50100

Calls and screen sharing. Recording needs the LiveKit Egress service, installed separately.

Without it — no calls; chats still work.

For email

SMTP

587 / 465

Your mail server: invitations, sign-up confirmation, password reset.

Without it — no emails go out.

For documents

SumDoc

8090 · /sumdoc

Edit .docx in the browser.

Without it — documents open as a download card.

For spreadsheets

SumSheet

8092 · /sumsheet

Edit .xlsx and .xlsm in the browser.

Without it — spreadsheets open as a download card.

Optional

MCP server

8091 · /mcp

The assistant and external agents (Claude, Cursor) work with tasks and pages.

Without it — the assistant only answers, no actions.

Optional

LLM

OpenAI-compatible /v1

Your model: Ollama or any OpenAI-compatible server, or a cloud provider by key.

Without it — no AI features.

Linux x86-64 + Docker

Images are built for linux/amd64. Docker and Docker Compose.

Layers: 2 GB RAM

Minimum for the app, plus PostgreSQL.

Editors: 2 GB + ~250 MB

per open document. Each document runs in its own process.

Files up to 900 MB

by default. The limit is changed with a variable.

Install

From a blank server to the first sign-in

Thirteen steps, each with ready code. Passwords and keys in the examples are change-me placeholders — replace them.

1
Prepare the server

Linux x86-64 with Docker and Docker Compose. A domain pointing at the server, e.g. example.com. Inside a private network you can use http://IP:8080 instead.
Generate your own password for every change-me placeholder.
Terminal
```
docker --version
docker compose version
mkdir -p /opt/layers && cd /opt/layers
openssl rand -hex 24
```

Create docker-compose.yml

One file for the whole install. Replace example.com with your domain and every change-me-… with your own value. Drop the services you don’t need — calls, editors, MCP — together with their variables.

The Layers volume must be /root/layers_data: files, God Mode settings and secrets live there. The database password appears twice and must match; so does the LiveKit key.

Layers and editor images are on Docker Hub: hissih/layers.

docker-compose.yml

name: layers

services:
  db:
    image: postgres:16-alpine
    restart: unless-stopped
    environment:
      POSTGRES_DB: layers
      POSTGRES_USER: layers
      POSTGRES_PASSWORD: change-me-db
    volumes:
      - pg_data:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U layers -d layers"]
      interval: 5s
      retries: 20

  manticore:
    image: manticoresearch/manticore:latest
    restart: unless-stopped
    volumes:
      - manticore_data:/var/lib/manticore

  layers:
    image: hissih/layers:latest
    platform: linux/amd64
    restart: unless-stopped
    depends_on:
      db: { condition: service_healthy }
      manticore: { condition: service_started }
    ports:
      - "127.0.0.1:8080:8080"
    volumes:
      - layers_data:/root/layers_data
    environment:
      SPRING_PROFILES_ACTIVE: server
      # Database
      DB_SERVER_URL: jdbc:postgresql://db:5432/layers
      DB_SERVER_USERNAME: layers
      DB_SERVER_PASSWORD: change-me-db
      # Admin panel /godmode
      ADMIN_USERNAME: admin
      ADMIN_PASSWORD: change-me-admin
      # Domain
      LAYERS_DOMAIN: example.com
      LAYERS_APP_DOMAIN: example.com
      APP_REDIRECT_URL: https://example.com
      APP_CORS_ALLOWED_ORIGINS: https://example.com
      # Search
      SEARCH_PROVIDER: manticore
      SEARCH_MANTICORE_ENABLED: "true"
      SEARCH_MANTICORE_URL: http://manticore:9308
      SEARCH_ELASTICSEARCH_ENABLED: "false"
      # Calls
      LIVEKIT_ENABLED: "true"
      LIVEKIT_URL: ws://livekit:7880
      LIVEKIT_PUBLIC_URL: wss://example.com/livekit/
      LIVEKIT_API_KEY: change-me-livekit-key
      LIVEKIT_API_SECRET: change-me-livekit-secret-min-32-characters
      # Email (outgoing)
      MAIL_PROVIDER: smtp
      SPRING_MAIL_HOST: smtp.example.com
      SPRING_MAIL_PORT: "587"
      SPRING_MAIL_USERNAME: noreply@example.com
      SPRING_MAIL_PASSWORD: change-me-smtp
      SPRING_MAIL_SMTP_AUTH: "true"
      SPRING_MAIL_SMTP_STARTTLS_ENABLE: "true"
      # SumDoc and SumSheet editors (addresses the browser sees)
      LAYERS_FASTDOC_URL: https://example.com/sumdoc
      LAYERS_FASTSHEET_URL: https://example.com/sumsheet
      # AI: the model is connected in God Mode → AI
      AI_ENABLED: "true"
      ASSISTANT_MCP_URL: http://mcp:8091/mcp
      AI_USER_MODEL_CHOICE: "true"

  livekit:
    image: livekit/livekit-server:latest
    restart: unless-stopped
    environment:
      LIVEKIT_CONFIG: |
        port: 7880
        bind_addresses: [""]
        rtc:
          tcp_port: 7881
          port_range_start: 50000
          port_range_end: 50100
          use_external_ip: true
        keys:
          change-me-livekit-key: change-me-livekit-secret-min-32-characters
        webhook:
          api_key: change-me-livekit-key
          urls:
            - http://layers:8080/v1/livekit/webhook
    ports:
      - "7880:7880"
      - "7881:7881"
      - "7882:7882/udp"
      - "50000-50100:50000-50100/udp"

  sumdoc:
    image: hissih/sumdoc-webhost:latest
    platform: linux/amd64
    restart: unless-stopped
    command: ["--base-path", "/sumdoc", "--max-cabins", "12", "--idle-min", "20",
              "--auth-url", "http://layers:8080/v1/me",
              "--attach-url", "http://layers:8080/v1/attachments/{id}/content"]
    ports:
      - "127.0.0.1:8090:8090"
    volumes:
      - sumdoc_cabins:/data/cabins

  sumsheet:
    image: hissih/sumsheet-webhost:latest
    platform: linux/amd64
    restart: unless-stopped
    command: ["--base-path", "/sumsheet", "--max-cabins", "12", "--idle-min", "20",
              "--auth-url", "http://layers:8080/v1/me",
              "--attach-url", "http://layers:8080/v1/attachments/{id}/content"]
    ports:
      - "127.0.0.1:8092:8092"
    volumes:
      - sumsheet_cabins:/data/cabins

  mcp:
    image: layers-mcp-server:from-distribution   # MCP server image from the distribution
    restart: unless-stopped
    depends_on: [layers]
    environment:
      SPRING_PROFILES_ACTIVE: server
      SERVER_PORT: "8091"
      LAYERS_BACKEND_BASEURL: http://layers:8080
      LAYERS_BACKEND_FORWARDINCOMINGAUTH: "true"
      LAYERS_BACKEND_REQUIREINCOMINGAUTH: "true"
    ports:
      - "127.0.0.1:8091:8091"

volumes:
  pg_data:
  manticore_data:
  layers_data:
  sumdoc_cabins:
  sumsheet_cabins:

3
Choose the search engine

Layers ships three search engines, picked with SEARCH_PROVIDER (auto, manticore, elasticsearch, lucene).
Manticore — recommended: a separate lightweight container, already in compose. Elasticsearch — if your company already runs a cluster: remove the manticore service and set the variables on the right. Lucene — built in, no separate service: the index lives in the Layers file directory (the layers_data volume); fits a small install.
After switching engines, reindex: God Mode → Platform → Search.
Elasticsearch — instead of the Manticore variables on layers
```
      SEARCH_PROVIDER: elasticsearch
      SEARCH_ELASTICSEARCH_ENABLED: "true"
      SEARCH_MANTICORE_ENABLED: "false"
      ES_HOST: elasticsearch.example.com
      ES_PORT: "9200"
      ES_PROTOCOL: https
      ES_USERNAME: layers
      ES_PASSWORD: change-me-es
```
Lucene — built in, no manticore service
```
      SEARCH_PROVIDER: lucene
      SEARCH_MANTICORE_ENABLED: "false"
      SEARCH_ELASTICSEARCH_ENABLED: "false"
```
4
Start it

The first start takes 15–60 seconds. When the log shows Started LayersApplication, open your domain and create the first account.
Terminal
```
docker compose up -d
docker compose logs -f layers
curl -s http://127.0.0.1:8080/health
# OK
```

Turn on HTTPS with nginx

Layers serves everything from port 8080 — nginx only terminates TLS and proxies calls, editors and MCP. Editors stay on the same domain so they receive the sign-in cookie.

No limit_req and no static serving in nginx — brute-force protection and caching are built in.

Terminal

sudo apt install nginx certbot python3-certbot-nginx
sudo certbot certonly --nginx -d example.com

/etc/nginx/sites-available/layers.conf

server {
    listen 80;
    server_name example.com;
    location /.well-known/acme-challenge/ { root /var/www/certbot; }
    location / { return 301 https://example.com$request_uri; }
}

server {
    listen 443 ssl http2;
    server_name example.com;

    ssl_certificate     /etc/letsencrypt/live/example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;

    client_max_body_size 1000m;
    add_header X-Content-Type-Options nosniff always;
    add_header X-Frame-Options SAMEORIGIN always;

    # Layers: web, API, God Mode
    location / {
        proxy_pass http://127.0.0.1:8080;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto https;
        proxy_read_timeout 300;
    }

    # LiveKit: signalling (the trailing slash in proxy_pass matters)
    location /livekit/ {
        proxy_pass http://127.0.0.1:7880/;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_read_timeout 86400s;
    }
    # LiveKit REST: the server SDK calls /twirp/ on the root
    location /twirp/ {
        proxy_pass http://127.0.0.1:7880/twirp/;
        proxy_set_header Host $host;
        proxy_read_timeout 86400s;
    }

    # Editors — on the same domain, so they get the Layers sign-in cookie
    location /sumdoc {
        proxy_pass http://127.0.0.1:8090;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_read_timeout 3600s;
    }
    location /sumsheet {
        proxy_pass http://127.0.0.1:8092;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_read_timeout 3600s;
    }

    # MCP for external agents (optional)
    location /mcp {
        proxy_pass http://127.0.0.1:8091/mcp;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_buffering off;
        proxy_read_timeout 3600s;
    }
}

Terminal

sudo ln -s /etc/nginx/sites-available/layers.conf /etc/nginx/sites-enabled/
sudo rm -f /etc/nginx/sites-enabled/default
sudo nginx -t && sudo systemctl reload nginx

6
Open the ports for calls

LiveKit carries audio and video over UDP. In God Mode → Apps → Integrations → LiveKit set wss://example.com/livekit/ (trailing slash required), test the connection and enable it.
If the log says could not validate external IP, replace use_external_ip: true with node_ip: <server IP>. Use node_ip in a closed network too.
Terminal
```
sudo ufw allow 7881/tcp
sudo ufw allow 7882/udp
sudo ufw allow 50000:50100/udp
```
7
Set up email

Emails from Layers — invitations, confirmations, password resets — go out through your SMTP server from compose. The same settings live in God Mode → Platform → Email, with a test email and templates.
The Mail module is a client inside Layers: people connect their existing mailboxes over IMAP and SMTP. Layers does not run a mail server of its own.
Port 465 instead of 587
```
SPRING_MAIL_PORT: "465"
SPRING_MAIL_SMTP_STARTTLS_ENABLE: "false"
SPRING_MAIL_PROPERTIES_MAIL_SMTP_SSL_ENABLE: "true"
```

Check the SumDoc and SumSheet editors

The editor stores no users and no files: it asks Layers who the person is (/v1/me) and fetches the file by id (/v1/attachments). skewMin: 0 means editor and engine come from the same release.

One open document takes about 250 MB of RAM; --max-cabins sets how many can be open at once.

Terminal

curl -s http://127.0.0.1:8090/sumdoc/health     # "status": "ok", "skewMin": 0
curl -s http://127.0.0.1:8092/sumsheet/health   # "status": "ok", "skewMin": 0
curl -s https://example.com/v1/capabilities
# {"fastdoc":{"enabled":true,"url":"https://example.com/sumdoc"},
#  "fastsheet":{"enabled":true,"url":"https://example.com/sumsheet"}, …}

9
Connect an AI model

God Mode → AI → Providers → Add provider. Built-in types are OpenAI, OpenRouter and Gonka; Custom connection takes any server with an OpenAI-compatible API, such as Ollama, no key required. “Test” lists the server’s models — pick the ones you want and enable them.
Our test setup uses a local Ollama with gpt-oss:20b this way. The address must be reachable from the Layers container: a service name or IP, not localhost.
docker-compose.yml — add under services
```
  ollama:
    image: ollama/ollama:latest
    restart: unless-stopped
    volumes:
      - ollama_data:/root/.ollama
# and under volumes:
#   ollama_data:
```
Terminal
```
docker compose up -d ollama
docker compose exec ollama ollama pull gpt-oss:20b
# address for “Custom connection”: http://ollama:11434/v1
# OpenAI-compatible server on another machine: http://<host>:8000/v1
```
10
Connect agents over MCP

The MCP server is already in compose: through it the Layers assistant takes actions — creates tasks, writes pages. External agents (Claude, Cursor and others) connect to https://example.com/mcp with a personal token: in Layers → Settings → Access Tokens, read-only or read and write.
Terminal
```
curl -s http://127.0.0.1:8091/actuator/health
# {"status":"UP", …}
```
11
Sign in to God Mode

https://example.com/godmode/login, user admin and your ADMIN_PASSWORD. “Getting started” is the server checklist: domains, email, sign-in, modules, branding. Each item is marked done from the server’s actual state.
12
Enter the license key

The trial period is 90 days; after that a license is required. The key is one line: God Mode → System → License → “Apply key”. It is verified on the server itself.
Terminal
```
curl -s https://example.com/layers/license/status
# {"mode":"MISSING", …, "node":{"regime":"evaluation","evaluationDaysLeft":89, …}}
# with a key: "regime":"full"
```
13
Update and back up

Updating means a new image; the database, files and settings stay in the volumes. Pin a tag instead of latest for predictable updates — the running tag is shown in God Mode → Operations → System health.
There is no built-in database backup in the panel: back up the database with pg_dump, files and settings as an archive of the layers_data volume.
Update
```
cd /opt/layers
docker compose pull
docker compose up -d
```
Backup
```
cd /opt/layers
docker compose exec -T db sh -c 'pg_dump -U $POSTGRES_USER $POSTGRES_DB' | gzip > layers-db-$(date +%F).sql.gz
docker run --rm -v layers_layers_data:/data -v "$PWD":/backup alpine \
  tar czf /backup/layers-data-$(date +%F).tar.gz -C /data .
```

Air-gapped

Air-gapped install — images as an archive

Pull the images on a machine with internet access and carry them over as one file. The license is checked on the server itself; the module catalog reaches out to the registry, and inside a closed network AI works with a local model only.

Terminal

docker pull hissih/layers:latest
docker save hissih/layers:latest postgres:16-alpine manticoresearch/manticore:latest \
  livekit/livekit-server:latest hissih/sumdoc-webhost:latest hissih/sumsheet-webhost:latest \
  | gzip > layers-images.tar.gz
# on the server inside the closed network
gunzip -c layers-images.tar.gz | docker load
docker compose up -d

Tested on our setup

How it runs for us

Every screenshot and clip on this site comes from a local test setup running exactly these services. Ports are shifted to 18xxx to avoid clashes; Mailpit and GreenMail are there only to test email.

Service	Image	Port in our setup	On your server
Layers	hissih/layers 2.1.184 (same jar)	18080	8080 behind nginx
PostgreSQL	postgres:16-alpine	18432	db:5432, internal
Manticore	manticoresearch/manticore	18308	manticore:9308, internal
LiveKit	livekit/livekit-server	18880 · 18881 · UDP 18900–18950	7880 · 7881 · UDP 50000–50100
Mailpit (mail trap)	axllent/mailpit	SMTP 18125	your SMTP server
GreenMail (test mailboxes)	greenmail/standalone:2.1.3	IMAP 18143 · SMTP 18325	people’s existing mailboxes
SumDoc	sumdoc-webhost	18290 · /sumdoc	8090 · /sumdoc
SumSheet	sumsheet-webhost	18292 · /sumsheet	8092 · /sumsheet
MCP server	from the distribution	18091 · /mcp	8091 · /mcp
LLM	Ollama, gpt-oss:20b	11434 · /v1	your model or provider

Checked on 2 October 2026: /health → OK, license — trial (89 days left), editors — status ok, MCP — UP.

Why this way

Control without compromise

Closed network

Installs in an air-gapped network: images and updates travel as an archive.

License on the server

The key is verified on the server itself.

No lock-out by headcount

The server never blocks people above the license size. Storage — as much as your hardware holds; per-space quotas are yours to set.

Your brand

Name, logo, colour, default language and your own legal documents.

Your AI

OpenAI, OpenRouter, any OpenAI-compatible server or local models.

Editors next to it

SumDoc and SumSheet run beside Layers, in the air-gapped network too.

License

Pricing on request

Trial

90 days

90 days at full speed. Without a key the server keeps running: people and data are not limited, only meeting transcription runs with a delay.

License

On request

We’ll discuss your team size, support and license terms.

Discuss self-hosting

The server never blocks people beyond the license. Setup, rollout, updates, customization and support are separate, by agreement and paid.

Frequently asked questions

Do I need internet?

No — not to install from an archive, not to run, not to check the license. AI in a closed network works with a local model.

How much hardware?

Layers needs at least 2 GB of RAM plus PostgreSQL. Editors need 2 GB plus about 250 MB per open document. Images are linux/amd64.

How do I update?

docker compose pull and docker compose up -d. Data and settings stay in the volumes.

How do I back up?

The database with pg_dump, files and settings as an archive of the layers_data volume. There is no built-in database backup in the panel.

A call connects but there is no audio or video

UDP 50000–50100 or 7882 is closed on the firewall, or LiveKit cannot find its external IP — set node_ip.

What happens after 90 days without a key?

The server keeps working: sign-in, people and data are not limited, nothing is closed. Only meeting transcription slows down — it runs at low priority with a few seconds of delay. With a key everything is back to full speed.

Is there corporate directory sign-in?

Not yet: SAML, LDAP and SCIM are not supported. Sign-in with password, Google, Yandex, VK and Gosuslugi are available.

Bring your team’s work together in Layers

Start free in the cloud — up to 20 people, no time limit — or deploy Layers on your own server.

Start free Deploy on your server

Layers on your server

Install it with an AI assistant

One app and a few services next to it

From a blank server to the first sign-in

Prepare the server

Create docker-compose.yml

Choose the search engine

Start it

Turn on HTTPS with nginx

Open the ports for calls

Set up email

Check the SumDoc and SumSheet editors

Connect an AI model

Connect agents over MCP

Sign in to God Mode

Enter the license key

Update and back up

Air-gapped install — images as an archive

How it runs for us

Control without compromise

Closed network

License on the server

No lock-out by headcount

Your brand

Your AI

Editors next to it

Pricing on request

Frequently asked questions

Bring your team’s work together in Layers
